Kasutamata komplekt.

Karp räsitud.

Info lingil https://www.rs-online.com/designspark/getting-started-with-okdo-raspberry-pi-4-b-starter-kit,

https://www.oomipood.ee/en/product/rpi_starter_8gb_okdo_okdo_raspberry_pi_4_starter_kit_8gb

This exclusive 8-piece Raspberry Pi 4 starter kit from OKdo includes everything you need to get going in the world of Raspberry Pi – from all the hardware in a single box, to access to an online step-by-step guide as well as projects to get up and running faster than ever, effortlessly. Simply plug into a monitor, keyboard, mouse and power supply and you’re ready to go.

What’s in the OKdo Raspberry Pi 8GB starter kit?
- Raspberry Pi 4 Model B 8GB board.
- 5.1v Power supply with 4 x interchangeable mains adaptors.
- USB to USB-C cable with in-line switch.
- 2 x Micro HDMI to HDMI cables.
- SanDisk 3D Gen3 X3 256Gb 2-Plane NAND Flash Die for 32GB MicroSD Card. (with NOOBS 3.1.1 preloaded)
- SD card reader.
- 3 x Heat sinks.
- Aluminium Raspberry Pi case with an integrated fan.

Step 1: Mount heatsinks

• Peel the protective backing from the heatsinks and stick them to the components shown in the diagram above

Step 2: Insert Raspberry Pi into case

• Insert Raspberry Pi into the case

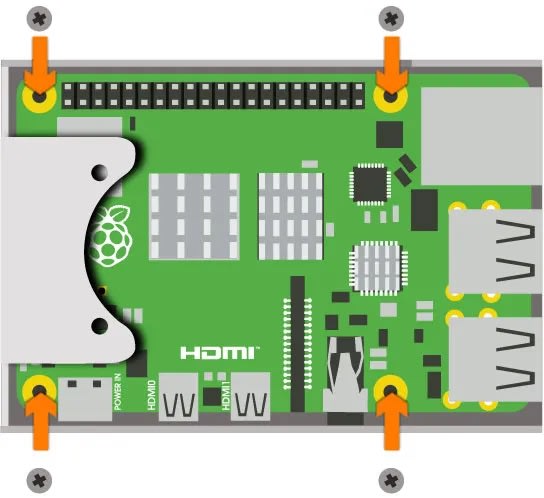

Step 3: Secure screws

• Secure the 4 screws that hold the Raspberry Pi to the case

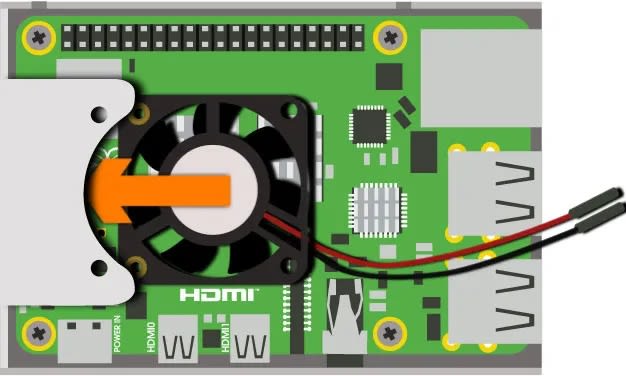

Step 4: Position fan

• Slide the fan into position

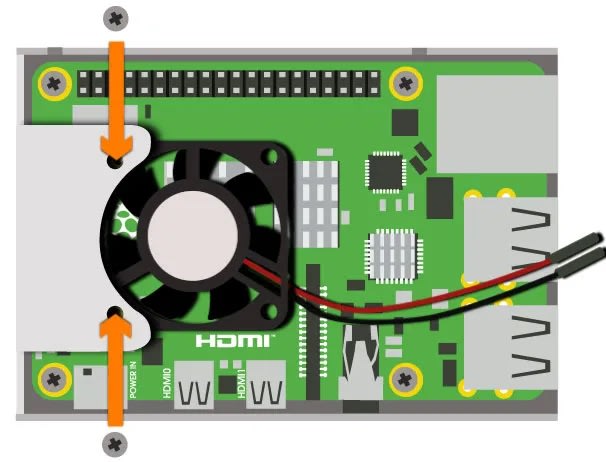

Step 5: Secure fan screws

• Secure the 2 screws that hold the fan in place

Step 6: Connect fan

• Connect the positive (red) cable of the fan to the pin shown above
• Connect the negative (black) cable of the fan to the pin shown above

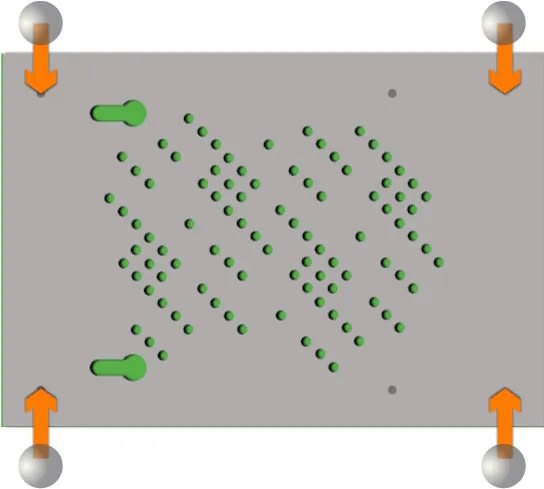

Step 7: Stick on feet

• Turn the Raspberry Pi and case around and stick the self-adhesive feet to the case

Step 8: Insert micro SD card

• Insert the micro SD card into the slot of the Raspberry Pi

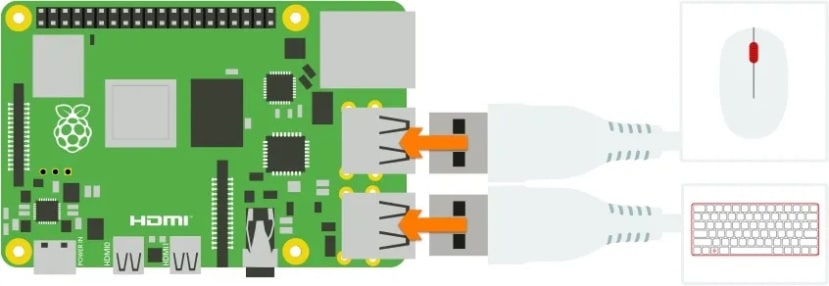

Step 9: Connect mouse & keyboard

• Connect the mouse and keyboard to any 2 of the USB ports

Step 10: Connect screen

• Connect the screen to the HDMI port labelled “HDMI0”

Step 11: Connect power

• Connect the power cable to the port labelled “POWER”
• Ensure that the switch on the power cable is turned on

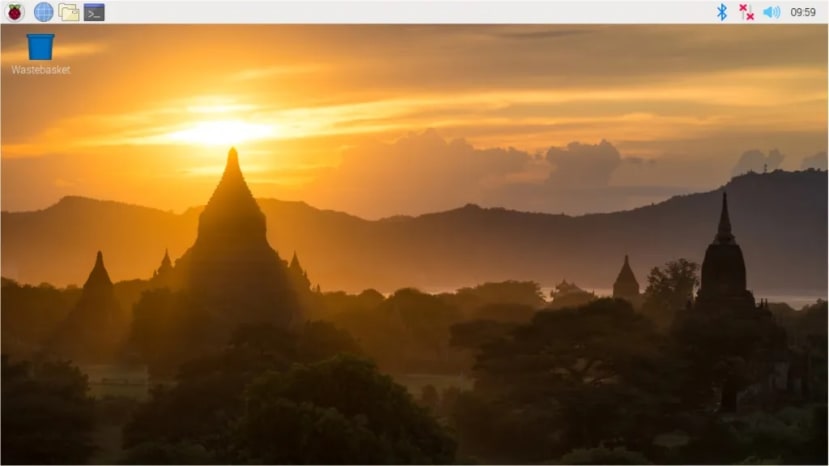

Step 12: Follow on-screen instructions

• Your Raspberry Pi will boot and display the desktop
• The first time you start up your Raspberry Pi, the Welcome to Raspberry Pi application will pop-up, guiding you through the initial setup

Step 13: Close case

The following steps are optional and not needed if you plan to use the GPIO pins in your projects.

• Carefully slide the top of the case into position ensuring that all the small tabs snap into place and the screw holes are aligned

Step 14: Secure case screw

• Use the remaining screw to secure the lid to the base of the case
